Electronic Interface Assembly with Stunning Graphics
Wish you could get more help with both the look and function of your membrane switches? Marking Systems Inc. can help with both! This month, we are featuring an Electronic Interface Assembly designed for a handheld device used in a high-humidity environment.

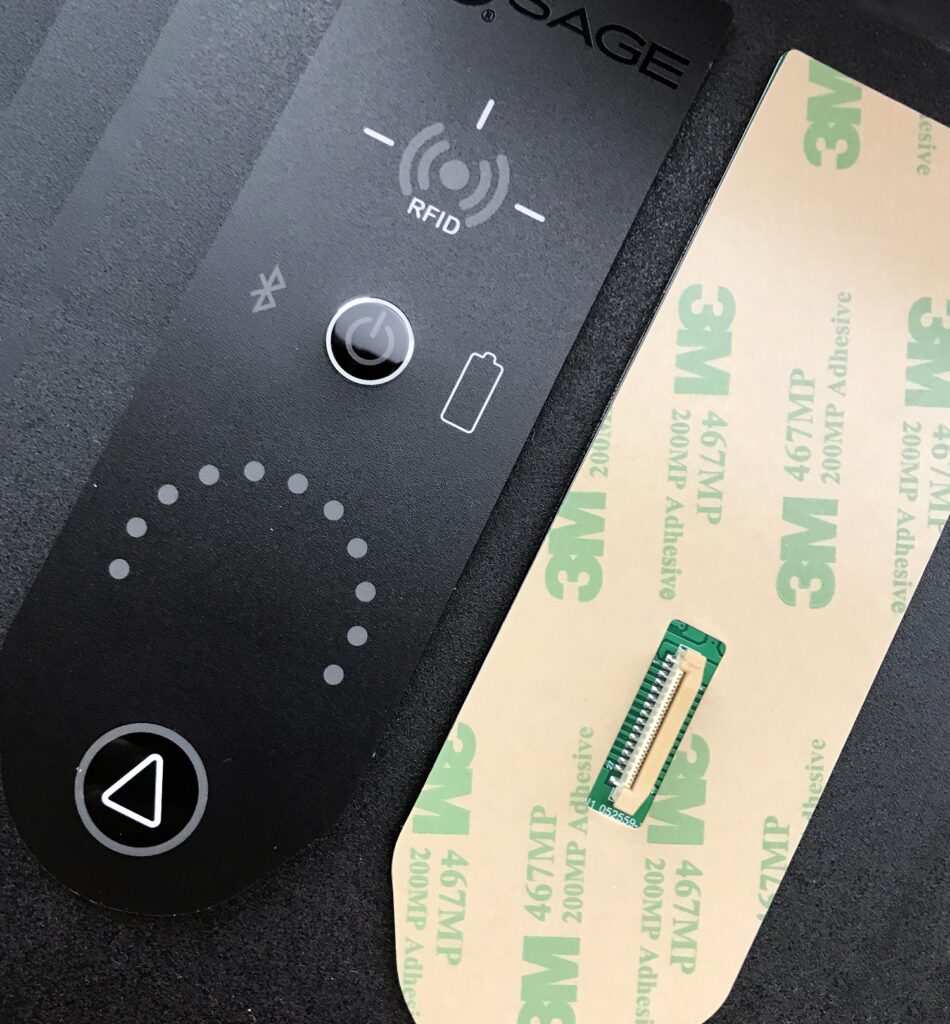

The membrane switch above has:
2 tactile keys
16 discreet LEDs (11 white, 5 RGB)
Backlighting with 8 side-firing LEDs and LGF (Light Guide Film)
Bottom circuit is 1mm thick double-sided polycarbonate
Termination is through a single Molex connector on the backside of the polycarbonate
.010 Gloss Polyester Overlay has these options:
Selective texture on Logo
Two highlighted glossy keys
Dead-fronting inside the battery symbol area and the triangular emergency icon area (located in the semi-circle of LEDs)
3M467 permanent acrylic adhesive for maximum adhesion and longevity
Learn more about this product label and order your own custom membrane switches at Marking Systems Inc. today!
